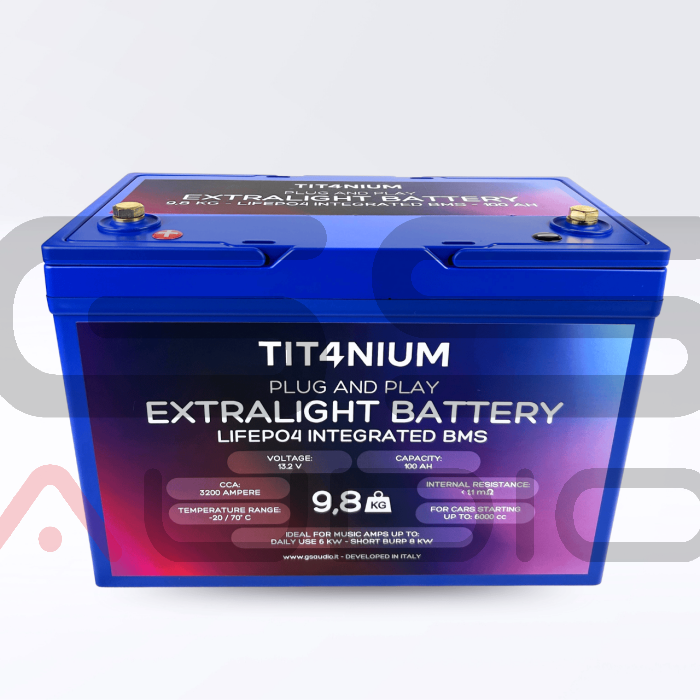

TIT4NIUM 100Ah-M8 Battery - CCA:3200A LifePo4 13.2V (30.5*21*16.8cm)

TIT4NIUM 100Ah-M8 battery - CCA:3200A LifePo4 13.2V (30.5*21*16.8cm)

The Tit4nium battery represents excellence in PLUG & PLAY high-performance batteries, combining power, light weight, and reliability in one product.

Superior Performance for Demanding Applications

With a capacity of 100Ah and a starting current(CCA) of about 3200A, this battery is designed to provide immediate and constant power, ideal for:

• High-power audio systems up to 6000W for daily use and up to 8000W for short SPL competitions;

• Starting engines up to 6000cc, ensuring fast and reliable starts;

• Competition vehicles where weight reduction and energy reliability are critical.

These batteries can also be used on motorhomes and in situations requiring energy storage, but they express their full potential on cars with sound systems, winches, or high electrical loads.

Advanced Management System (BMS)

The TIT4NIUM LiFePO4 100Ah-M8 13.2V battery has 4 active BMSs placed in parallel that monitor and balance the cells, offering:

• Overload protection: 14.7V limit, beyond which the BMSs dissipate excess voltage;

• Deep discharge protection: 10.8V threshold, below which the positive pole is disconnected;

• Performance optimization: continuous cell balancing for maximum efficiency;

• Thermal control: guaranteed operation between -20°C and +70°C.

Technical Specifications and Dimensions

• Rated voltage: 12.8V

• Voltage at rest: 13.2V

• End-of-charge voltage: 14.6V

• Maximum voltage: 15V

• Internal resistance: <1.1mΩ

• Weight: 9.8kg

• Dimensions: 30.5 × 16.8 × 21 cm (22 cm with M8 bolts)

Advanced LiFePO4 Technology

Lithium Iron Phosphate (LiFePO4) chemistry offers significant advantages:

• Long service life: up to 15000 cycles;

• High safety: superior thermal and chemical stability;

• Low self-discharge: maintains charge for a long time;

• Eco-friendly: free of acids and heavy metals.

Compatibility and Installation

The battery is PLUG & PLAY and can replace the original battery or be installed in the trunk. LiFePO4s require no ventilation and can be mounted in any position.

Available with M5, M6, M8 terminals or ISO poles depending on the model.

Important Warnings.

• Do not combine different technologies (AGM, LTO, lead acid, etc.);

• Use only LiFePO4 batteries if replacing existing ones;

• For inactivity over 30 days, recharge with dedicated chargers.

Why Choose TIT4NIUM Batteries?

TIT4NIUM batteries are the result of GS Audio research. They offer high performance, reliability and CE / ROHS compliance.

With an energy density of 153 Wh/kg they are among the lightest available:

- LTO ≈ 70 Wh/kg

- AGM ≈ 38 Wh/kg

NOTICE ANYTHING DIFFERENT? NEW BRAND, SAME LOOK

With the new TIT4NIUM brand, GS Audio introduces an improved generation of batteries: more efficient, lighter, and reliable.

Power your vehicle with the LiFePO4 100Ah-M8 13.2V Extralight LiFePO4 Battery: energy without compromise.
