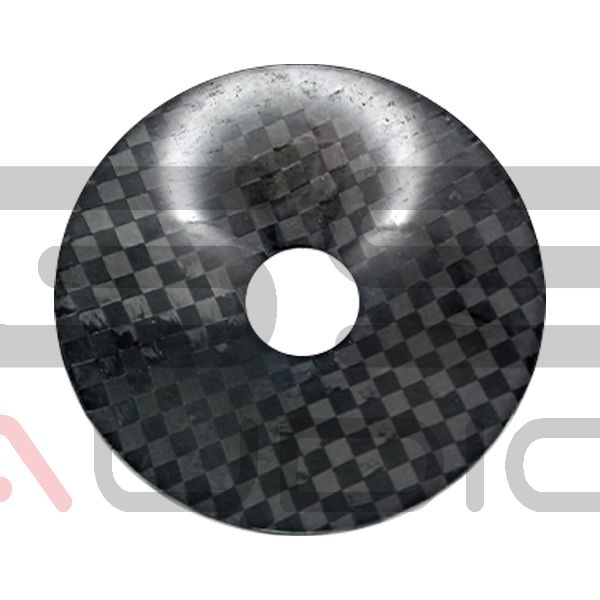

CHESS CONE 'FLAT' 15"/38 cm - without surround - Sandwich extrastrong - diameter on choice
Made in Italy by us in our shop
Sandwich thinckness about 3.5/3.8 mm, other types on request
Weight: 95 ± 3 grams
The cones with chess fiber are particularly indicated for extreme applications with powers even bigger than 20kw / woofer.
The particular weaving of these fibers with a quadrate of 12-15 mm allows the creation of a cone extremely rigid and not flexible, suitable for high SPL performances.
All our cones are perfectly smooth in the front part and in the back,
this is an important factor that alows to reduce the internal turbulence of the box and increase the speed of the air between basket-spider-cone.
Attention: all the carbon fibers conduct electricity so the tinsel must be isolated from the cone fibers when assembling all togerther.
SURROUND NOT INCLUDED
Cone without surround, weight about 95 ± 3 grams according to the voice coil diameter and the cone height that you will choose.
‘FLAT’ CHESS CONE | ||
OUTER CONE DIAMETER | VOICE COIL DIAMETER | CONE HEIGHT |
313 mm (recommended for our surround 26x26) | 76 mm | 54 mm |
100 mm | 49 mm | |
306 mm (recommended for our surround 27x27) | 76 mm | 52 mm |
100 mm | 47 mm | |
300 mm | 76 mm | 51 mm |
100 mm | 46 mm | |
295 mm | 76 mm | 50 mm |
100 mm | 45 mm | |
290 mm | 76 mm | 49 mm |
100 mm | 44 mm | |
280 mm | 76 mm | 47 mm |
100 mm | 42 mm | |
275 mm (recommended for our surround 40x30) | 76 mm | 46 mm |
100 mm | 40 mm | |
Attention: these cones are handmade so it could be necessary about 2-5 days before your order will be sent, according to the availability in our stock.
Contact us for urgencies!
