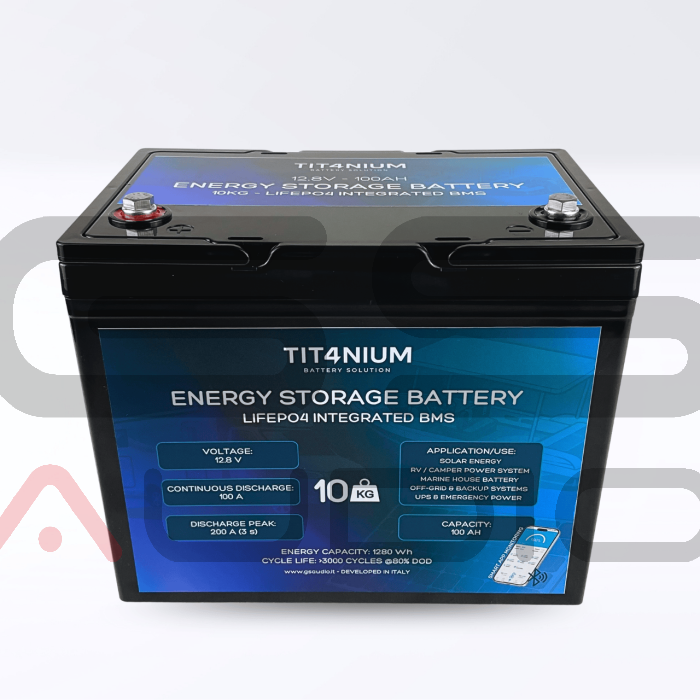

LiFePO4 Energy Storage Battery TITANIUM 100Ah M8 12.8V for Camper & Marine | Bluetooth App

LiFePO4 TITANIUM 100Ah - M8 12.8V | Energy Storage, RV and Boating - with Bluetooth App

This 100Ah Tit4nium brand battery is designed for energy storage applications in RVs, marine, off-grid systems and backups, where reliability, safety and stable discharge over time are required.

Warning: not suitable for the car audio and tuning industry

Technical Specifications and Dimensions

• Rated Capacity: 100Ah

• Energy: 1280Wh

• Cycle life: >3000 cycles @80% DOD at 25°

• Self-discharge: ≤3% per month at 25°

• Weight: 10kg

• Dimensions: 256 × 167 × H209 mm without poles (219 mm height with poles)

Charging and Discharging

• Rated voltage: 12.8V

• Charging voltage: 14.6V ±0.1V (calculated based on 3.65V for each cell)

• Standard charging current: 0.2C (20AH)

• Maximum charging current: 0.5C (50AH)

• Maximum continuous discharge current: 1C (100AH)

• Peak discharge current: 2C (<3 seconds) (200AH)

• End-of-discharge voltage (cut-off): 10.0 V (calculated based on 2.5 V for each cell)

Integrated BMS system

The battery has a built-in intelligent BMS, which protects the cells from overcharge, overdischarge, short circuit, and improper operating conditions. Thanks to the Bluetooth application you can remotely monitor the status of the BMS, allowing constant control of cell balancing and more conscious energy management, which is particularly useful in storage systems.

Bluetooth APP Monitoring!

Did you know you can monitor the status of this battery from anapp on your phone? Download the app from the stores and connect your purchased battery via Bluetooth. Lots of features available including:

• Charge and discharge activation: ability to enable or disable battery charge and discharge functions directly from the app;

• Current and voltage calibration: manual adjustment of current and voltage values in case of differences between actual measurements and those displayed in the app;

• Automatic cell balancing: forced activation of the balancing function with real-time display of cell status;

• Warning and alarm clearing: deletion of error messages and alarm data stored by the BMS;

• Residual capacity reset: recalculation of available battery capacity based on the current voltage value.

Advanced LiFePO4 Technology.

Lithium Iron Phosphate (LiFePO4) chemistry offers significant advantages such as long service life (up to 15000 cycles), enhanced safety (thermal and chemical stability), low self-discharge (holds a charge for a long time), and eco-friendliness (it is acid and heavy metal free).

Important Warnings.

• Do not combine different technologies (AGM, LTO, lead, etc.).

• For inactivity over 30 days, recharge with dedicated chargers (available on the site category "Power Supplies" our Titanium brand chargers)

• Charging temperature: 0° to 45° (32°F to 113°F)

FOR MORE INFORMATION ON APPLICATIONS, MAINTENANCE, PRECAUTIONS FOR USE AND STORAGE, SEE THE MANUAL INSIDE THE PACKAGE.

Why Choose TITANIUM Batteries?

TIT4NIUM batteries are the result of GS Audio research. They offer high performance, reliability and CE / ROHS compliance. With an energy density of 128 Wh/kg they are among the lightest available:

LTO ≈ 70 Wh/kg
AGM ≈ 38 Wh/kg

NOTICE SOMETHING DIFFERENT? NEW BRAND, SAME LOOK

With the new TIT4NIUM brand, GS Audio introduces an improved generation of batteries: more efficient, lighter, and reliable.

Renew your energy with the Extralight LiFePO4 100Ah-M8 12.8V Battery: energy without compromise.
