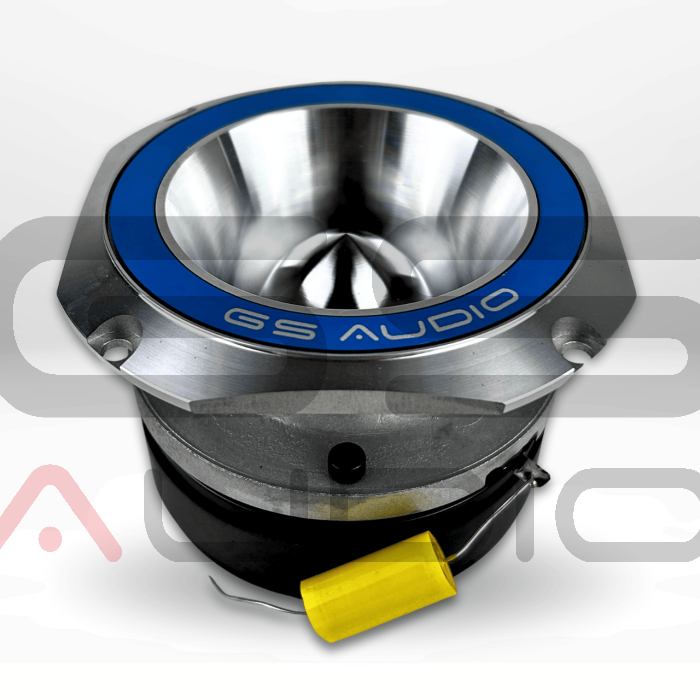

GS Audio Tweeter 2.5/20kHz - 4 Ohm - 170WRMS - 45mm Voice Coil | Blue

GS Audio Tweeter 45 2.5/20kHz | 4 Ohm - 170 WRMS 45mm Coil | Blue

Price refers to single product

This 45mm/1.75" coil tweeter is designed for maximum efficiency in the smallest possible space.

Titanium diaphragm, ultralight coil and 90mm ferrite magnet were the winning choices to achieve good linearity above 2500Hz and outstanding compactness that allows it to be installed even in small spaces.

The center phase shifter with high flaring ensures low distortion and excellent reproduction of mid-high frequencies.

Coil characteristics: 45mm, copper-coated aluminum wire (CCAW).

Specifications:

• Coil: 45mm/1.75"

• Filament: CCAW

• Rim: blue aluminum

• Magnet: 90mm

• Power: 170 WRMS

• Frequency: 2.5kHz - 20kHz

• Impedance: 4 Ohm

• Dimensions: 100mm x 41mm

• Weight: 1.38kg

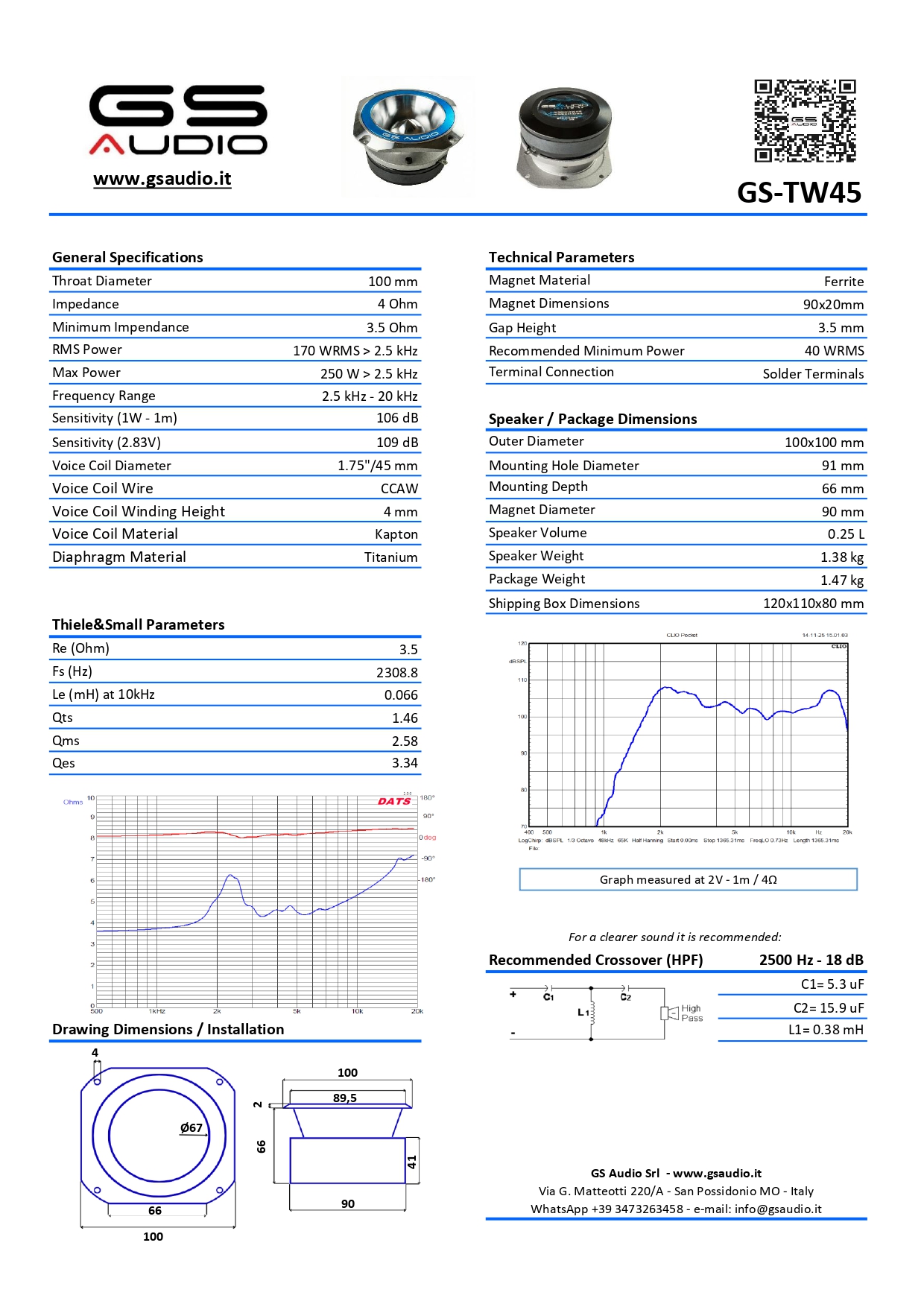

Data sheet

Download a the data sheet at this link (pdf)
