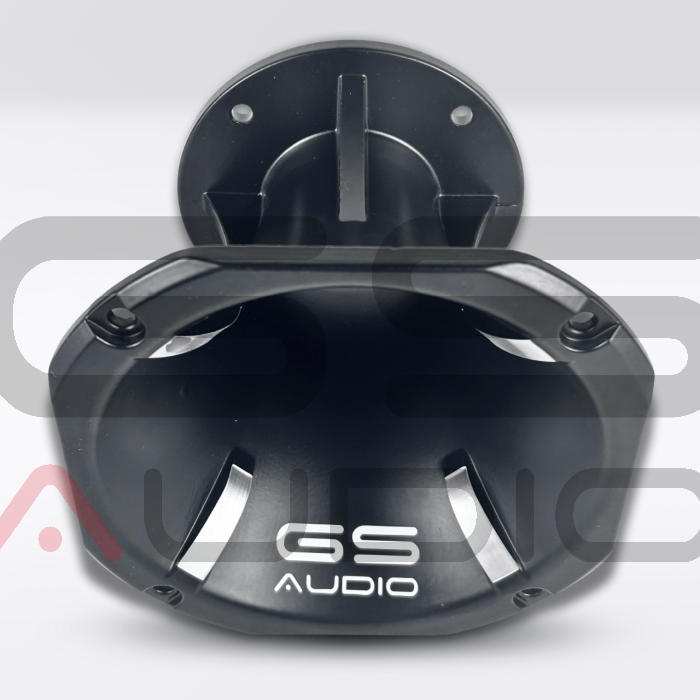

GS Audio Square Horn 155mm x H122mm | Matte Aluminum - For Compression Drivers

GS Audio Square Horn 155mm x H122mm | Matte Aluminum - For Compression Drivers

Price per piece

GS Audio square trumpet made of aluminum and designed for use with compression drivers/tweeters, ideal for car audio, SPL and professional audio applications where robustness, coupling accuracy and consistent output are required.

The 4-hole mount flange ensures a solid attachment compatible with the major compression drivers on the market.

Specifications:

• Material: aluminum

• Finish: matte black

• Shape: square

• Driver attachment: 4 holes

• Hole spacing: 4 x 102 mm

• Throat: 50 mm (2")

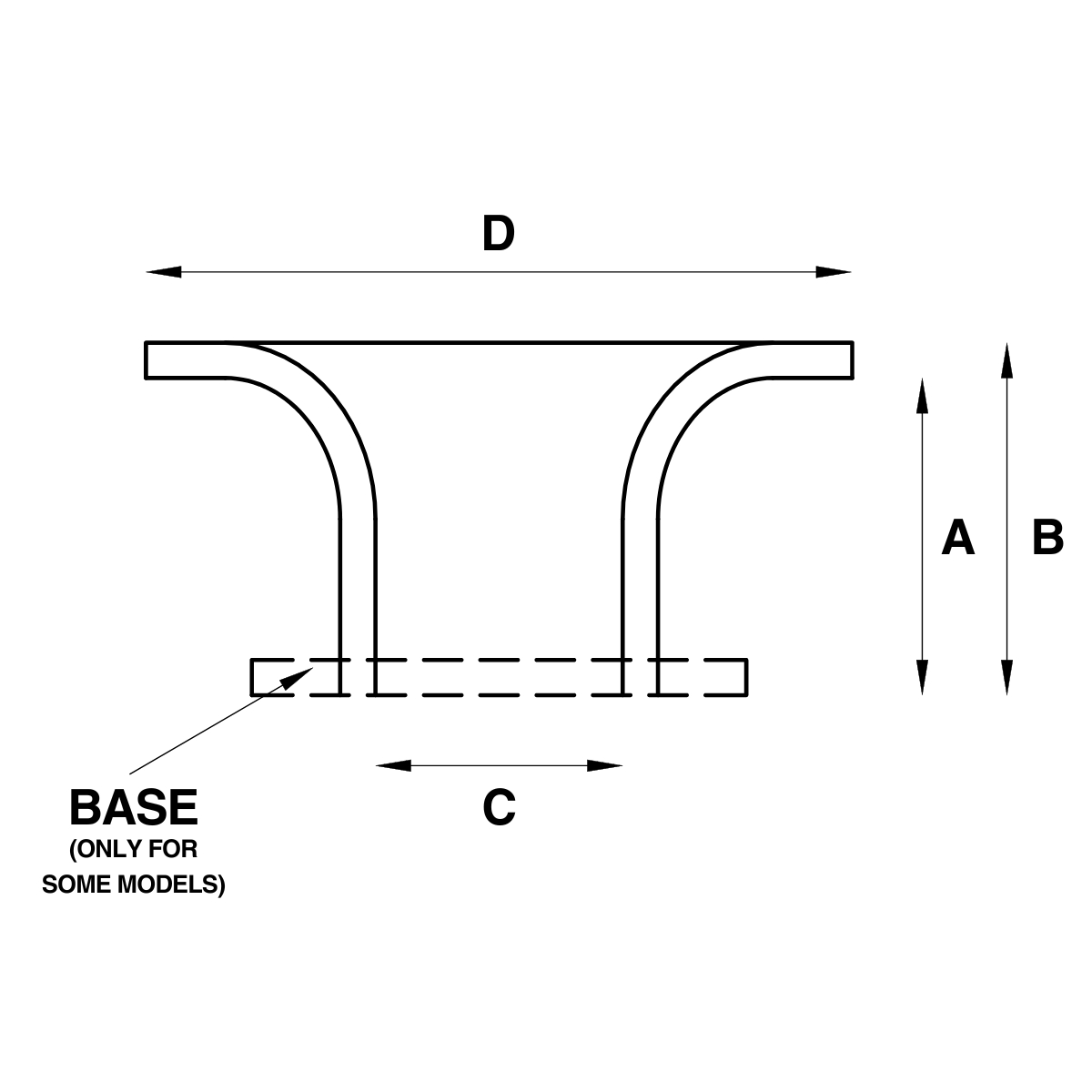

Dimensions:

D - Outer side: 155 x 155 mm (6.10" x 6.10")

A - Installation depth: 122 mm (4.80")

B - Total depth with flange: 132 mm (5.19")

C - Throat diameter: 50 mm (2")
