Sound Quality COMPACT series2-channel Class Damplifier of 2×280 WRMS @ 2 Ohm / 1×560 WRMS @ 4 Ohm. This line represents an evolution of the Sound Quality series and is designed to offer high tonal quality, loudspeaker control, and compact size without compromising on performance.
Through the use of new integrated circuits and IGBT power transistors with low thermal dissipation, it has been possible to reduce chassis weight and footprint, achieving compact dimensions with precise and controlled sound output, typical of a sound quality-oriented design.
From the combination of sound quality and compact size comes the name SQ Compact (Sound Quality Compact).
RCA + high-level inputs: compatible with standard car radios, no need for additional interfaces
Front audio adjustments: easy and immediate access even in installations with reduced visibility
Power terminal blocks: support cables up to 35 mm² for solid connection
Internal design: round toroidal transformers, large filter capacitors, vertical control boards and polyester capacitors on IN/OUT reduce background noise and interference
2 × 165 WRMS @ 4 Ohms
2 × 280 WRMS @ 2 Ohms
Bridge mode: 1 × 560 WRMS @ 4 Ohm
LPF: 50 Hz to 500 Hz (can be turned off)
HPF: 50 Hz to 2000 Hz (can be turned off)
Bass boost: 0 dB to 15 dB

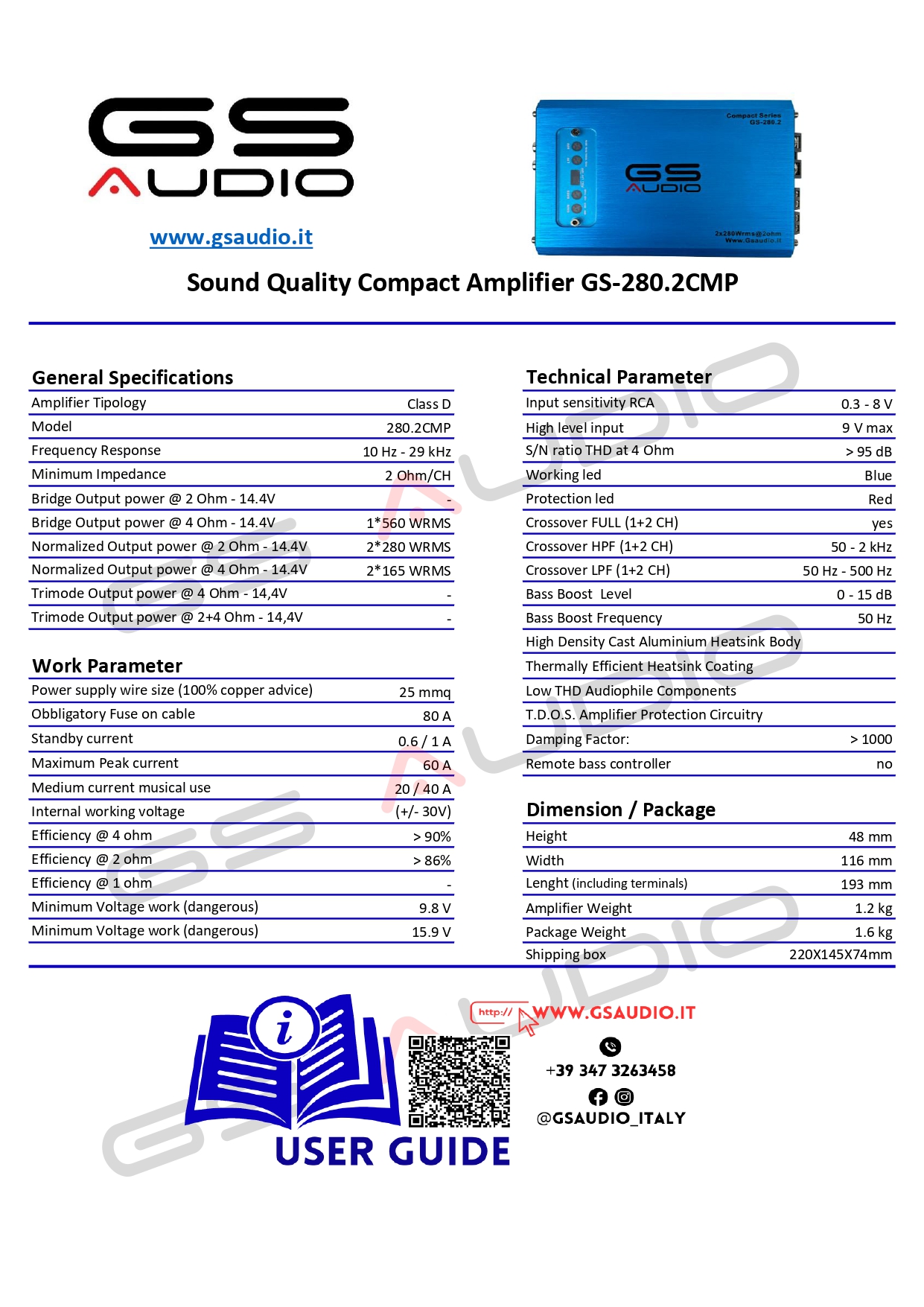

Download product data sheet (PDF)
Download full amplifier user manual (PDF)
Download multilingual CE marking certificate (PDF)
Amplifier, product data sheet, CE marking certificate, GS Audio pre-spaced, mounting screws, high level input cable, 2 25 A fuses
Remote control NOT included
